Good Quality Brass Landing Valve - EPDM Fire Hose – Minshan
Good Quality Brass Landing Valve - EPDM Fire Hose – Minshan Detail:
Specification
Jacket: 100% Virgin Polyester Jacket,Single Jacket, Double Jacket, Twill or Plain Weave high performance in abrasion-resistance
Lining: EPDM rubber tube
Package: Rolled, packed in carton or loaded in pallet
Quality Standard: EN14540,BS6391
Construction:The hose consists of an EDPM lining , and single fabric jacket formed from polyester yarn. The lining adheres to the jacket. The hose is designed for fire protection purposes.
Hose & Coupling Sizes
|
Size |
Large Diameter |
High water flow |
Hydrant Ready |
Easy Handing |
Pump Ready |
|
1’’ |
√ |
√ |
√ |
√ |
√ |
|
1.5’’ |
√ |
√ |
√ |
√ |
√ |
|
2’’ |
√ |
√ |
√ |
√ |
√ |
|
2.5’’ |
√ |
√ |
√ |
√ |
√ |
|
3’’ |
√ |
√ |
√ |
√ |
√ |
|
4’’ |
√ |
√ |
√ |
√ |
√ |
Features:
|
Working Pressure |
8 Bar |
10Bar |
13Bar |
16Bar |
20Bar |
25Bar |
|
Test Pressure |
12Bar |
15Bar |
19.5Bar |
24Bar |
30Bar |
37.5Bar |
|
Burst Pressure |
24Bar |
30Bar |
39Bar |
48Bar |
60Bar |
75Bar |
|
Standard Length |
15m |
20m |
25m |
30m |
40m |
|
|
Couplings |
GOST |
NST |
STORZ |
JOHN MORRIES |
||
|
Material |
EPDM |
|||||
|
Color |
White |
Red |
Yellow |
Blue |
Orange |
Black |
How do you install a fire hose?
Attach the hose guide to a suitable location about 330 to 350 mm in the side and 330 to 350 mm down the center of the mounting plate. Lift the reel to the wall mounting plate. Insert hose through the hose guide and place the nozzle into the bracket. Connect the water supply to the shut-off valve.
Certifications:
Our company have passed the CE certification, the Certification (CCC Certificate) by CCCF, the ISO9001 and many specified standards requirements from the international market.Existing quality products are applying for UL,FM and LPCB certifications.
Product Line:
The company has integrated a whole set of production line together, strictly comply with each part of the process requirements, control each step of the procedure, to improve the overall work efficiency.
Knitting
Testing
Package
Application: It attaches to a fire engine or a fire hydrant.
Exhibitions：
Our company regularly participates in domestic and international large-scale fire exhibitions.
– China International Fire Protection Equipment Technology Conference & Exposition in Beijing.
– Canton Fair in Guangzhou.
– Interschutz in Hannover
– Securika in Moscow.
– Dubai Intersec.
– Saudi Arabia Intersec.
– Secutech vietnam in HCM.
– Secutech India in Bombay.

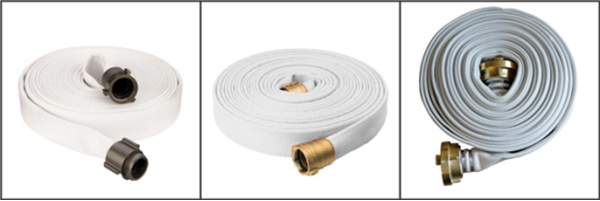

Product detail pictures:
